Bag filter housing
|
|
| Model No.︰ | SAM-2C |
| Brand Name︰ | SAM |
| Country of Origin︰ | China |
| Unit Price︰ | US $ 430 / pc |
| Minimum Order︰ | 1 pc |
|
|
|
|
|
|
|
ECONOMIC SIDE ENTRANCE DESIGN
FOUR HOUSING SIZES 01#,02#,03#,04#
BASKET WITH VITON PROFILE GASKET FOR SEALING
INLET/OUTLET 2" AND 1 1/2" SOCKET
V-CLAMP CLOSURE, WITHOUT THE NEED FOR ANY TOOLS TO OPEN
MOUNTING LEGS TO ADJUST HOUSING HEIGHT
|
Model
|
SAM-1C
|
SAM-2C
|
SAM-3C
|
SAM-4C
|
|
Max Flow (m3/h)
|
20
|
40
|
6
|
12
|
|
Filtration Area (m2)
|
0.25
|
0.5
|
0.09
|
0.16
|
|
Operating data
|
Max.6 bar /120℃ respectively 10bar/30℃
|
Max.9 bar /120℃ respectively 10bar/30℃
|
|
Filter housing volume (litre)
|
15.5
|
27.0
|
3.0
|
4.5
|
|
Installation height (mm)
|
Approx.980
|
Approx.1810
|
Approx.590
|
Approx.900
|
|
Filter housing weight (kg)
|
Approx.12
|
Approx.17
|
Approx.5
|
Approx.6
|
|
Connection Type (inlet/outlet)
|
2” BSP female
|
1 1/2” BSP female
|
|
|
|
|

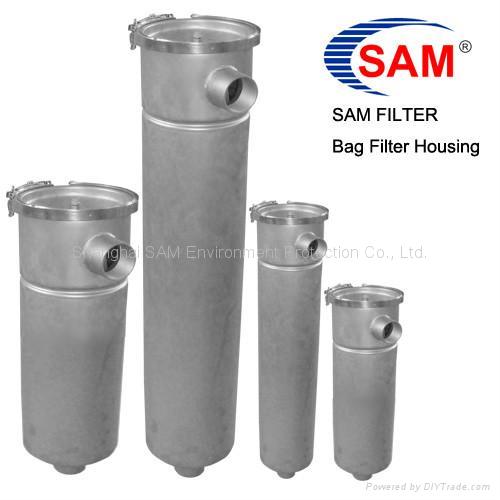

Product Image
|
|
Bag filter housing
|
|
|
|
|
|
